Grinding is like giving a material a makeover, but with power tools. It uses tiny, tough particles to shape surfaces, remove flaws, or prep them for fancier treatments. Think of it as sanding’s more intense cousin—great for hard materials that need precision. Let’s break it down.
Grinding isn’t one-size-fits-all. The way it works depends on the material. Soft metals, like aluminum, deform a bit before the abrasive cuts through. Hard materials, like ceramics, just fracture into tiny pieces.
Wheel Grinding: Picture a fast-spinning wheel covered in abrasive grains. It’s great for flat surfaces or cylinders. Use it to sharpen tools, smooth metal plates, or shape hard materials like steel.
Belt Grinding: This uses a loop of abrasive cloth (like a giant sandpaper belt) that spins quickly. It’s perfect for curved surfaces or large areas—think sanding down a wooden table or smoothing a car fender.
Planar Grinding: Ever need multiple samples to be perfectly flat and even? This automated process does that. It grinds a batch of specimens at once, making sure they all have the same surface level. Useful for labs testing lots of samples.
Honing: This one’s for precision. It smooths the inside of tubes or holes—like engine cylinders—using a rotating tool with abrasives. It makes the surface so even that parts fit together without leaks.
Lapping: Imagine rubbing two surfaces together with abrasive powder in between. Lapping creates ultra-flat surfaces or even patterns. Watchmakers use it to make glass watch faces super smooth.
Vibratory Grinding: Toss parts into a vibrating tub with abrasive stones. The vibrations make everything rub together, gently removing burrs or rough edges. Great for small parts like screws or jewelry.
Silicon Carbide (SiC): The workhorse. It’s tough, works on metals and ceramics, and comes as waterproof paper. Perfect for wet grinding because it doesn’t fall apart when wet.
Aluminum Oxide (Al₂O₃): Durable and long-lasting. Good for metals like steel and wood. It’s slower than SiC but leaves a smoother finish.
Diamond: The heavyweight champion. For super hard materials—ceramics, gemstones, or sintered carbides. It comes in discs (metal or resin-bonded) or slurries.
Emery: A mix of aluminum oxide and iron oxide. It’s cheap but not very efficient, so it’s rarely used anymore.
Pro tip: Start with a coarse grit to remove big flaws, then step up to finer grits. A typical sequence might be 240 → 320 → 400 → 600 grit for metals.
Planar Grinders: These are automated workhorses. They use a spinning stone or abrasive disc to flatten multiple samples at once—saving time in labs.
Belt Grinders: Portable or bench-mounted, they use a moving belt to grind large areas quickly. Carpenters and metalworkers swear by them.
Wheel Grinders: A classic tool with a spinning wheel. Great for sharpening tools or removing burrs from metal parts.
Automated Systems: Fancy machines that let you program speed, pressure, and time. They’re perfect for consistent results when processing lots of parts.
Manual Tools: Sandpaper, hand files, or small grinders. Ideal for small projects or irregularly shaped parts that machines can’t handle.
Wet vs. Dry: Wet grinding is better for most metals. It keeps the surface cool (so materials don’t warp) and stops abrasive particles from clogging up. Use water unless the material reacts badly to it (like some woods).
Grit Sequence: Never skip grits! Each finer grit removes scratches from the previous one. If you jump from 240 to 600 grit, you’ll leave deep scratches that won’t come out.
Avoid Embedding: Soft metals (like lead or aluminum) can trap abrasive particles. This ruins the surface. Use gentle pressure and clean the surface between steps to prevent this.
Clean Thoroughly: Wipe off debris after each step. Even a little leftover grit can scratch the surface when you move to a finer grit.
Grinding takes practice, but get these basics right, and you’ll be on your way to smooth, precise surfaces every time.
Once grinding gets the surface smooth, polishing takes it to the next level. It’s all about removing tiny scratches and making things shiny—so shiny, they might even reflect your face. Let’s dive in.
Why bother? Polished surfaces look better, resist rust, and are easier to clean. In labs, they let scientists see the material’s true structure under a microscope—no scratches getting in the way.
Mechanical Polishing: Using cloths coated with fine abrasives (like diamond paste or alumina). You can do this by hand or with a machine. Hand polishing is good for small parts; machines handle big batches.
Automated Polishing: Machines that let you program speed, pressure, and time. They’re a must for consistent results—no more uneven finishes from tired hands.

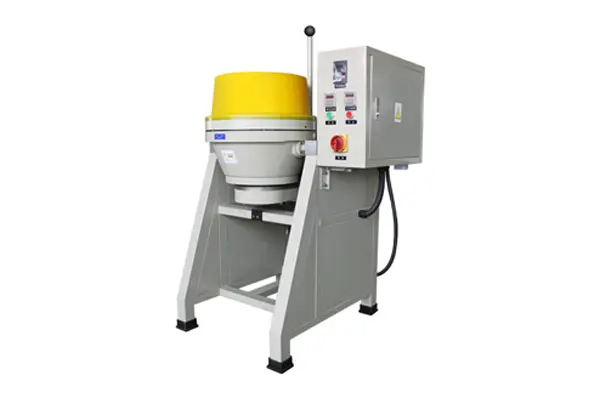

Vibratory Polishing: Parts go into a vibrating tub with abrasive media. The vibrations gently smooth surfaces, great for soft metals or fragile samples.
Electrolytic Polishing: Uses electricity and a chemical solution to dissolve rough spots. No mechanical scrubbing means no risk of damage—perfect for sensitive materials.
Chemical Polishing: A solution etches away tiny bumps. It’s gentle, making it good for delicate plastics.
Diamond Pastes/Slurries: Best for hard materials. Monocrystalline diamond (sharp, like natural diamonds) works for general use. Polycrystalline diamond (more edges) cuts faster—great for tough metals.
Colloidal Silica: A liquid with tiny silica particles. It polishes by both chemical and mechanical action, leaving a super smooth surface. Scientists use it for electron microscopy samples.
Aluminum Oxide Slurries: Fine powders mixed with water or oil. Perfect for final polishing on metals. Sol-gel alumina (special process) is better than regular because it doesn’t clump.
Specialty Abrasives: Cerium oxide for glass, chromium oxide for metals—used when standard abrasives don’t work.
Polishing cloths matter too. Napless (smooth) cloths are best for coarse polishing with diamonds. Low-nap or medium-nap cloths work for final polishing—they hold abrasives gently to avoid scratches.
Manual Polishing Wheels: A rotating wheel covered in cloth. Hold the part against it, moving in circles. Simple but takes skill for even results.
Automated Polishers: Program speed, pressure, and time. Great for large batches—no more uneven finishes.
Vibratory Polishers: High-frequency vibrations polish parts slowly but gently. Perfect for soft metals or sensitive samples.
Electrolytic Systems: A tank with electrolyte, a power supply, and clamps for the part. Electricity does the work, so no mechanical damage.
Metals (Steel, Aluminum, Titanium): Start with 6-3µm diamond paste on a napless cloth. Then 1µm diamond, finish with colloidal silica for shine.
Ceramics and Carbides: Use diamond discs (3-0.5µm) on rigid cloths. They’re hard, so use firm pressure—but not too much, or they’ll crack.
Polymers (Plastics): Be gentle! Use fine SiC paper first, then a soft cloth with 0.5µm alumina slurry. Too much pressure warps plastic.
Soft Metals (Lead, Tin): Avoid rough abrasives that get stuck. Use 3µm diamond on a low-nap cloth, keep the surface wet.
Pitting: Small holes from rough abrasives or dirty cloths. Switch to finer abrasive and clean everything.
Staining: Discoloration from chemicals or dirt. Wash with soap and water, dry right away. Use alcohol for sensitive materials.
Comet Tailing: Streaks behind small particles. Caused by uneven pressure. Keep the part moving evenly across the cloth.
Not Shiny Enough: Skipped a grit. Go back to the previous finer grit, polish longer, then move up again.
Polishing takes patience. Rushing leads to mistakes—take your time, and the shine will be worth it.
Embedded Abrasives: Tiny particles stuck in soft metals? Try ultrasonic cleaning to vibrate them loose. Next time, use less pressure and wet grinding.
Uneven Surfaces: Check equipment—maybe the wheel or belt isn’t straight. Or you’re applying uneven pressure. Use a guide tool or switch to an automated machine.
Overheating: If the material feels hot, stop! Switch to wet grinding, slow the machine, or lighten pressure. Heat warps metals or melts plastics.
Cloudy Finish: Leftover abrasive or dirt. Wash with soap and water, dry with a lint-free cloth. For mirror shine, use a final pass with colloidal silica.
With these fixes, you’ll tackle almost any problem.
Practice makes perfect. Start with the basics: choose the right grit sequence, keep equipment clean, and be patient. With time, you’ll master creating surfaces that look great and work well—whether for a lab sample, a car part, or a DIY project.
